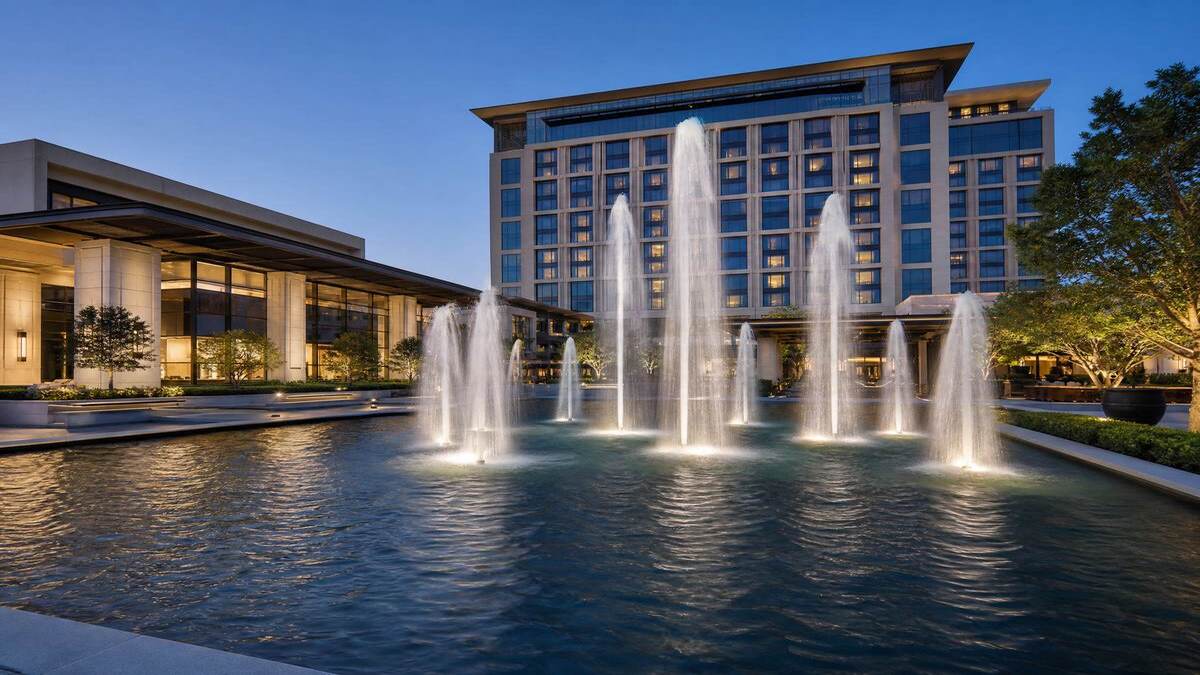

Commercial Fountains
Stable, controllable flow for plaza fountains, vertical jets and interactive water displays. Accurate pump performance helps maintain consistent visual effects.
Innovative Technology-leading Water Pump Manufacturer
Specialized in Water Pumps
-
- DC Return pump
Fish Aquarium Water Pump-Energy-Efficient,Quiet,Variable Speeds,Safe.
- Variable Speed Pond Pump
Pond Waterfall Pump with Variable Speed : High Flow & Energy Efficient.
- DC Bottom Suction Pump
Fish Tank Pump-Energy-Efficient, Quiet,Variable Speeds,Safe DC 24V.
- Variable Speed Pond Pump
Pond Waterfall pump with Variable Speed : High Flow & Energy Efficient
- DC Wavemaker
Wave Maker for Fish Tank-Quiet, Energy-Efficient,4 Modes ,Variable Speed.
- Variable Speed Pond Pump
Pond Waterfall Pump with Variable Speed : High Flow & Energy Efficient.
-
- DC Return pump
Fish Aquarium Water Pump-Energy-Efficient,Quiet,Variable Speeds,Safe.
- Variable Speed Pond Pump
Pond Waterfall Pump with Variable Speed : High Flow & Energy Efficient.
-
Variable Speed Pond Pump Variable Speed Pond Pump
-
Home / Water Features & Landscape Projects
Pond Pumps For Water Feature Engineering
Stable flow, consistent jet height and reliable recirculation are essential for successful water features. AquaFlow pond pumps support architectural fountains, reflecting pools, cascades and commercial landscape water projects.
For fountain contractors, landscape engineers and project integrators, the right pump must deliver the design flow at the actual head, operate continuously and remain easy to maintain after commissioning.

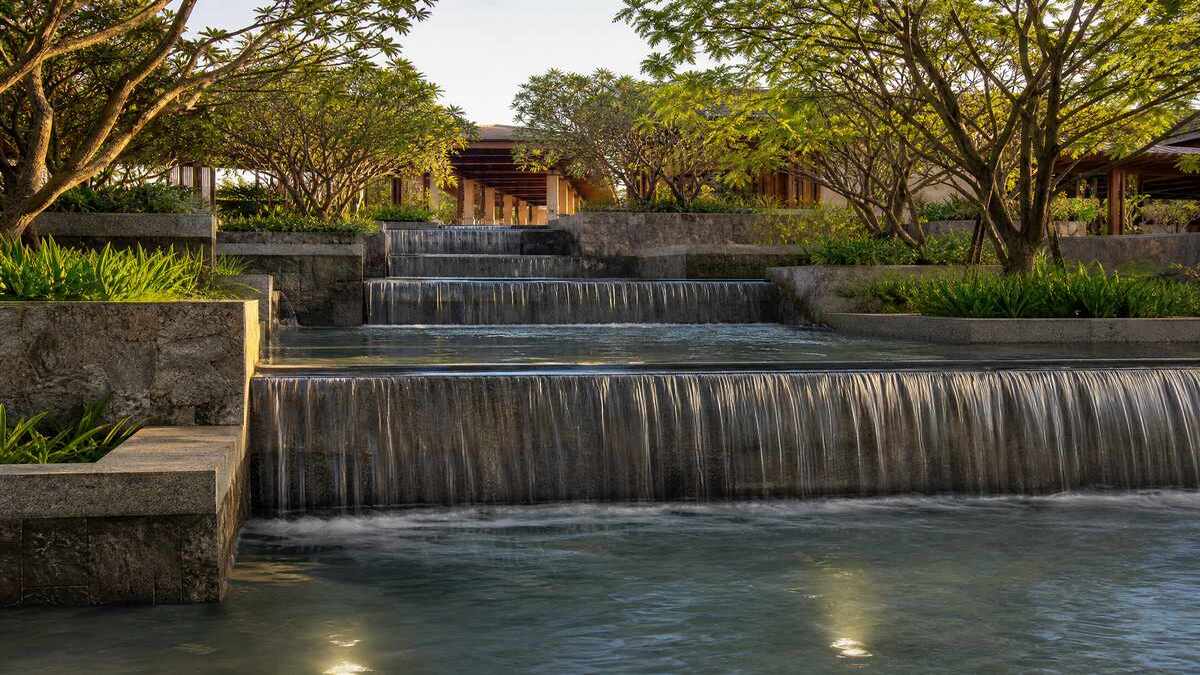

Landscape Water Features
Quiet circulation for resort cascades, reflecting pools, streams and architectural water walls. Deliver attractive water movement with dependable operation.

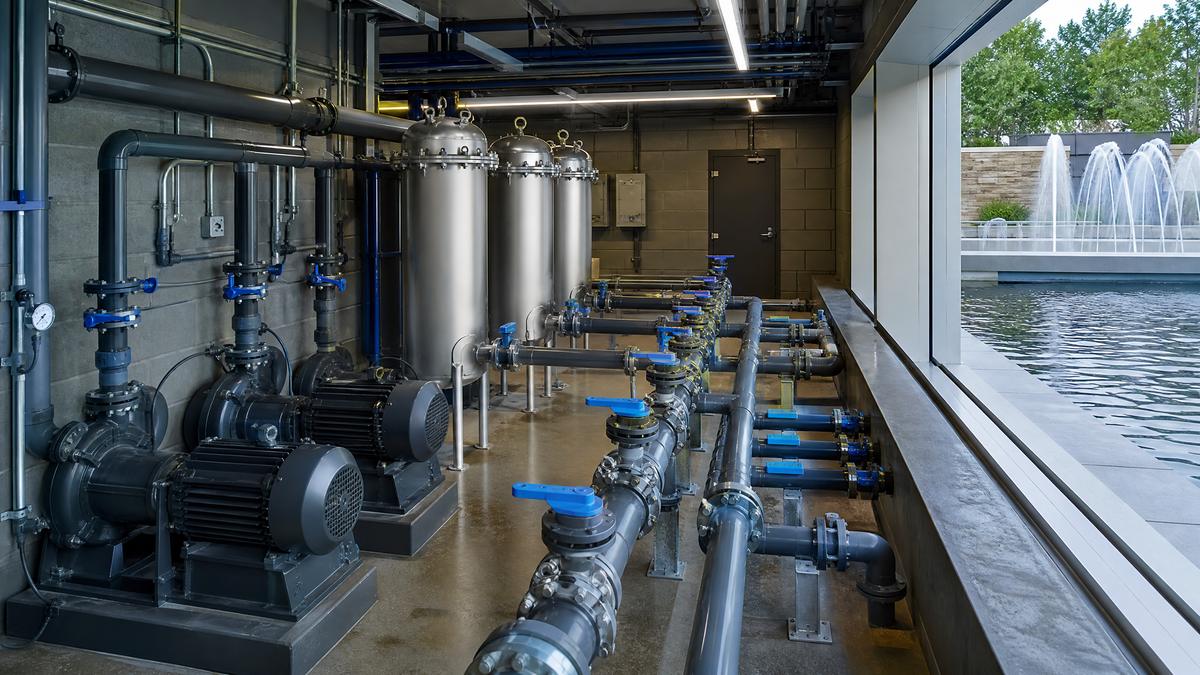

Water Feature Contractors
A dependable pump platform for fountain contractors, landscape engineers and system integrators connecting balance tanks, filters, manifolds, jets and return lines.
How Water Feature Pump Circulation Works
- The pump draws water from the fountain basin, sump or balance tank.
- Flow passes through strainers, filters, valves and distribution manifolds.
- Balanced flow returns through jets, cascades or architectural outlets at the required pressure.
Design Your Own Water Feature Pump System
Innovative Technology-leading Water Pump Manufacturer
A
Serving Fountain Contractors, Landscape Engineers & Project Integrators
- What is the total fountain basin or balance-tank volume?
- What are the required flow, pressure and operating effects?
- What is the vertical lift from the basin to the highest nozzle or cascade?
- Is the application a fountain, cascade, reflecting pool, water wall or interactive feature?
Choose Water Feature Pumps According To Your Needs
Calculate the required working flow and pressure at the actual operating head, then select the pump according to nozzle demand, pipe size, filtration loss, energy efficiency, noise limits and maintenance access.
B
How to calculate water feature system head?
- h1
Vertical lift from basin water level to the highest outlet
- h2
Horizontal pipe distance between pump room and fountain
- h3
Friction loss through bends, valves, strainers, filters and manifolds - h4
Required nozzle pressure and outlet elevation
Total dynamic head:
H = h1 + h2/10 + h3 + h4
C
How to choose a water feature pump?
The pump should meet the required flow and pressure at the real system head—not only its maximum open-flow rating. Select a model with enough reserve for filter loading, manifold losses, nozzle wear and future expansion.
Example:
Commercial Plaza Fountain
Model:AF-30000-WF | Recommended flow: 24,000–30,000 L/H
- Pump power: 750 W maximum
- Input voltage: 220–240 V / 50 Hz
- Maximum open circuit voltage: 160v
Input voltage: 220–240 V / 50 Hz
- Quiet continuous-duty motor and serviceable strainer
- VOC voltage < 160v
Solar panel:
- power 330w
- VMP voltage 37.26v
- VOC voltage 45.64v
3 solar panels in series:
- power 330w*3=990w
- VMP voltage 37.26v*3=111.78v
- VOC voltage 45.64v*3=136.92v
In this case, the power and voltage requirements of the pump can be satisfied, so this solar photovoltaic panel array scheme is acceptable.
D
Is variable-speed control necessary for a water feature?
A controller is recommended when the project needs adjustable jet height, timed shows, quiet-hour operation, commissioning control or energy-saving circulation.
How to choose a fountain pump controller?
Choose a controller matched to the pump motor and site power supply. Smart control can coordinate schedules, variable water effects, duty/standby pumps, dry-run protection and alarms.
F
How to select water feature pump pipework and cables?
The installation should use correctly sized suction and discharge lines, accessible isolation valves and protected electrical connections. Design for balanced distribution, easy cleaning and safe service in wet public environments.
Notes for selecting water feature installation lines:
- Use corrosion-resistant pipe, valves, manifolds and sealed connectors suitable for treated water.
- Select waterproof cable glands, overload protection and safety devices for the motor load and cable distance.
- Select waterproof cable glands, overload protection and safety devices for the motor load and cable distance.m.
References
Innovative Technology-leading Water Pump Manufacturer
Bring Every Water Feature Design to Life.
Put Reliable Pump Engineering to Work in Your Project.
Related Products Recommendation
Innovative Technology-leading Water Pump Manufacturer

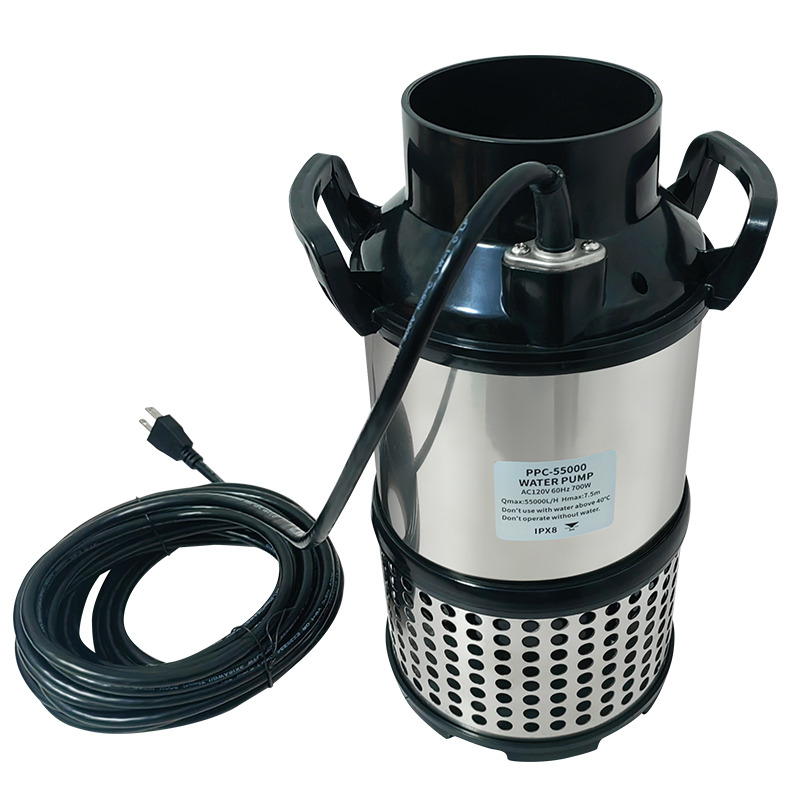

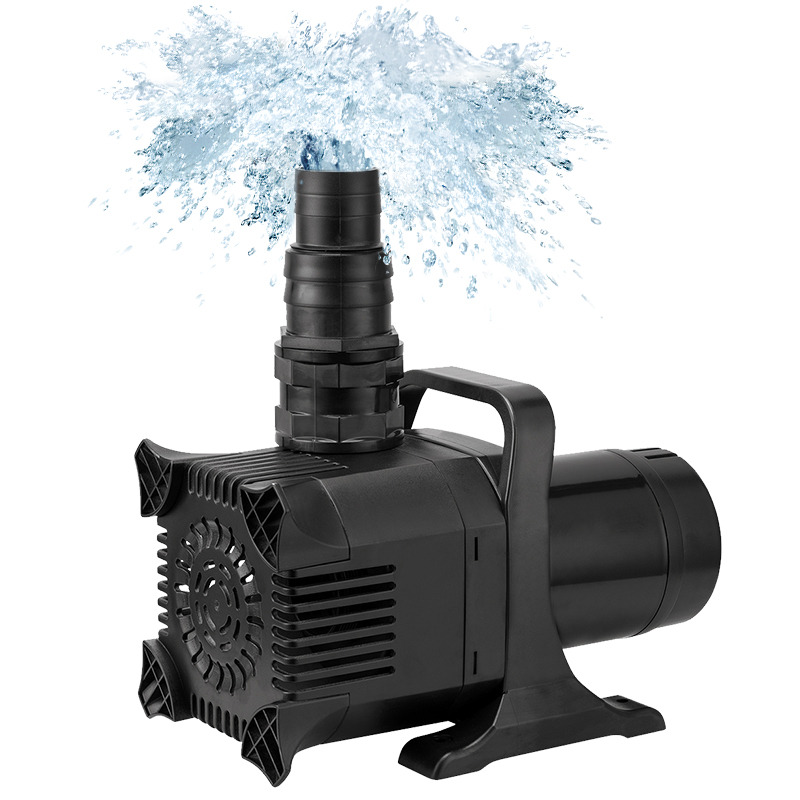

External Water Feature Circulation Pump
Heavy-duty, efficient pumping for fountains, cascades, reflecting pools and return lines.
Variable-Speed Fountain Pump Controller
Adjust jet height, timed sequences, quiet hours and energy-efficient operation.
Water Feature Filtration Pump Package
Matched circulation equipment for strainers, filters, manifolds, nozzles and return lines.
Contact Us To Get A Detailed Solution For Free
Tell us the feature dimensions, target flow, nozzle pressure, head height and pipe layout. We can recommend a pump solution for fountains, cascades and architectural water projects.
